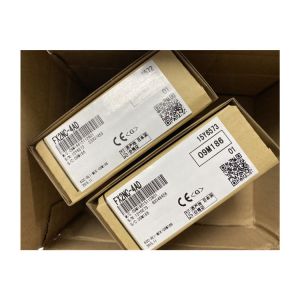

FX2N Mitsubishi PLC Module Analog FX2NC-4AD Programmable Logic Controller

Ask Lasest Price
Brand Name :	MITSUBISHI
Model Number :	FX2NC-4AD
Supply Ability :	10pc/per week
Price :	$50-$500
Payment Terms :	T/T, western union

Add to Cart

Product Details
Company Profile

FX2N Mitsubishi PLC Module Analog FX2NC-4AD Programmable Logic Controller

Mitsubishi plc module FX2NC-4AD and mitsubishi plc fx2n

Introduction
The FX2NC-4AD analog input block (hereafter referred to as "FX2NC-4AD") converts
4 points of analog input values (voltage and current inputs) into digital values, and
transfers them to the main unit.
The FX2NC-4AD can be connected to the FX2NC / FX3UC Series PLC.
1) A combination of voltage and current analog inputs selectable via the PLC TO
instruction should be used to configure the individual input channels.
2) The voltage input range can be selected within -10 to 10V, alternatively, the
current input range can be selected within -20 to 20mA and 4 to 20mA. The
input characteristics can be adjusted for each channel (except when {=2, 5, 8
is set in BFM #0 that disables all changes to the offset or gain).
3) The resolution is 0.32 mV (20 V × 1/64,000) or 2.50 mV (20 V × 1/8,000) when
voltage input is used, and 1.25 μA (40 mA × 1/32,000) or 5.00 μA (40 mA × 1/
8,000) when current input is used.
4) Data transfer with the PLC is performed via the buffer memories of the FX2NC4AD using FROM/TO instructions.

Specification

Mitsubishi PLC Module	FX2N and the FX2NC PLC’s Specification	Remarks
Operation control method	Cyclic operation by stored program
I/O control method	Batch processing method (when END instruction is executed)	I/O refresh instruction is available
Operation processing time	Basic instructions: 0.08 msApplied instructions: 1.52 to several 100 ms
Programming language	Relay symbolic language + step ladder	Step ladder can be used to produce an SFC style program
Program capacity	8000 steps built in	Expandable to 16000 steps using additional memory cassette
Number of instructions	Basic sequence instructions: 20 Step ladder instructions: 2 Applied instructions: 125	A Maximum 125 applied instructions are available
I/O configuration	Max hardware I/O configuration points 255, dependent on user selection (Max. software addressable Inputs 255, Outputs 255)
Auxiliary relay(M coils) Auxiliary relay(M coils) General	3072 points	M0 to M3071
Auxiliary relay(M coils) Latched	2572 points (subset)	M500 to M3071
Auxiliary relay(M coils) Special	256 points	From the range M8000 to M8255
State relays (S coils) General	1000 points	S0 to S999
State relays (S coils) Latched	500 points (subset)	S500 to S999
State relays (S coils) Initial	10 points (subset)	S0 to S9
State relays (S coils) Annunciator	100 points	S900 to S999
Timers (T) 100 msec	Range: 0 to 3,276.7 sec200 points	T0 to T199
Timers (T) 10 msec	Range: 0 to 327.67 sec46 points	T200 to T245
Timers (T) 1 msec retentive	Range: 0 to 32.767 sec4 points	T246 to T249
Timers (T) 100 msec retentive	Range: 0 to 3,276.7 sec6 points	T250 to T255
Counters (C) General 16 bit	Range: 1 to 32,767 counts200 points	C0 to C199Type: 16 bit up counter
Counters (C) General 16 bit Latched 16 bit	100 points (subset)	C100 to C199Type: 16 bit up counter
Counters (C) General 16 bit General 32 bit	Range: -2,147,483,648 to 2,147,483,64735 points	C200 to C234Type: 32 bit up/down counter
Counters (C) General 16 bit Latched 32 bit	15 points (subset)	C219 to C234Type: 16 bit up/down counter
