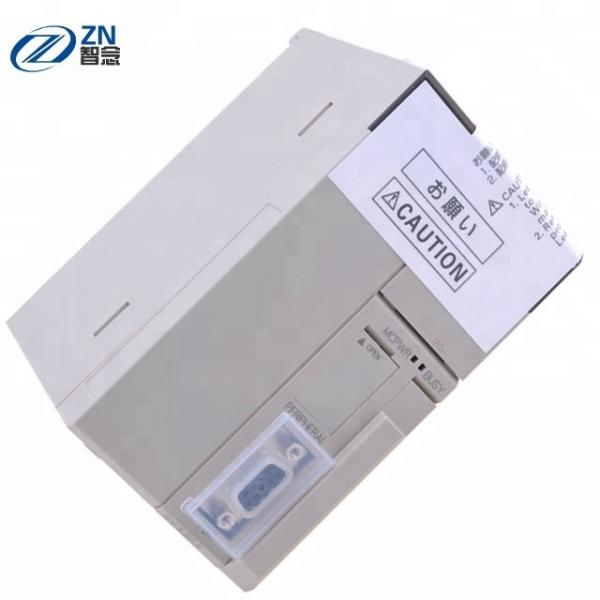

CS1D Omron PLC Analog Input Module Output CPU Module CS1D-CPU65H

Ask Lasest Price
Brand Name :	OMRON
Model Number :	CS1D-CPU65H
Supply Ability :	10pc/per week
Price :	$50-500
Payment Terms :	T/T, western union
MOQ :	1 piece

Add to Cart

Product Details
Company Profile

CS1D Omron PLC Analog Input Module Output CPU Module CS1D-CPU65H

New omron plc price list Omron CS1D series Omron PLC CPU Module

CS1 is Omron's most extensive PLC family, with a maximum capacity of 5120 'local' digital I/Os. Up to 7 expansion racks can be connected to a single CPU rack, bringing the maximum number of I/O units to 80. Any combination from over 200 models of digital I/Os, analog I/Os, control units and communication units can be mounted in any order. The huge instruction set and function block library allow you to write very compact programs, using any mix of IEC 61131-3 Structured Text and ladder language.

CS1D CPU module (CPU dualization)

product name	Specification						Specifications current consumption (A)		model
product name	I/O points	Program capacity	data memory capacity	programming language	CPU duplication	interrupt function	5V series	26V series	model
CS1D CPU module (for dual CPU)	5120 points Additional number of devices: 7	400K　 Step	832K Word (DM: 32K Word, EM: 32K Word×25 Bank)	Ladder Diagram, FB, ST, SFC	Can	not possible	0.82*	one	CS1D-CPU68HA
		250K　 Step	448K Word (DM: 32K Word, EM: 32K Word×13 Bank)	Ladder Diagram, FB, ST, SFC			0.82*	one	CS1D-CPU67HA
		250K　 Step	448K Word (DM: 32K Word, EM: 32K Word×13 Bank)	ladder diagram			0.82*	one	CS1D-CPU67H
		60K　 Step	128K Word (DM: 32K Word, EM: 32K Word×3 Bank)	ladder diagram			0.82*	one	CS1D-CPU65H

Note. The interrupt function cannot be used when the CPU duplex, double expansion, or single expansion system is used.

＊When connecting to NT-AL001 type, add 0.15A to 1 port.

CS1D Program CPU Module

product name

Specification

Current consumption (A)

model

CPU Department

loop control unit

5V series

26V series

CS1D Program
CPU Module

Equivalent to CS1D-CPU67H

[LCB05D]
Operation method: function block
method Number of function blocks: Maximum 500
Minimum operation period: 100ms
PID control method: 2 degrees of freedom PID
(with automatic adjustment function)

1.04

one

CS1D-CPU67P

Equivalent to CS1D-CPU65H

1.04

one

CS1D-CPU65P

Note

1. The CS1W-LCB01/05 circuit control board cannot be mounted on the CS1D CPU module CS1D-CPU@@H (for dual CPU system). To use the dual system of the circuit control board, please use the CS1D program CPU module CS1D-CPU@@P type. For details, please refer to the CS series PLC measuring device catalog (catalog number: SBCC-185).

2. When using the CPU duplex system, the interrupt function cannot be used.

CS1D CPU module (for CPU-only system)

product name	Specification						Current consumption (A)		model
product name	I/O points	Maximum program capacity	data memory capacity	programming language	CPU duplication	interrupt function	5V series	26V series	model
CS1D CPU module (for CPU-only system)	5120 points Number of additional units: 7	250K　 Step	448K Word (DM: 32K Word, EM: 32K Word×13 Bank)	Ladder Diagram, FB, ST, SFC	not possible	Can	0.82*	one	CS1D-CPU67SA
	1280 points Number of additional units: 3	30K　 Step	64K Word (DM: 32K Word, EM: 32K Word×1 Bank)	Ladder Diagram, FB, ST, SFC			0.82*	one	CS1D-CPU44SA
	5120 points Number of additional boards: 7	250K　 Step	448K Word (DM: 32K Word, EM: 32K Word×13 Bank)	ladder diagram			0.82*	one	CS1D-CPU67S
	5120 points Number of additional boards: 7	60K　 Step	128K Word (DM: 32K Word, EM: 32K Word×3 Bank)	ladder diagram			0.82*	one	CS1D-CPU65S
	1280 points Number of additional boards: 3	30K　 Step	64K Word (DM: 32K Word, EM: 32K Word×1 Bank)	ladder diagram			0.78*	one	CS1D-CPU44S
	960 points Number of additional boards: 2	10K　 Step	64K Word (DM: 32K Word, EM: 32K Word×1 Bank)	ladder diagram			0.78*	one	CS1D-CPU42S

＊When connecting NT-AL001, add 0.15A per port.
