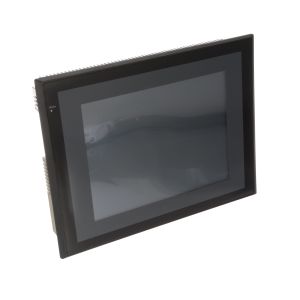

Omron Human Machine Interface Display 60MB 10 Inch NS10-TV00B-V2

Ask Lasest Price
Brand Name :	Omron
Model Number :	NS10-TV00B-V2
Supply Ability :	10pc/per week
Price :	$469.00 - $1,199.00/Pieces
Payment Terms :	T/T, western union

Add to Cart

Product Details
Company Profile

Omron Human Machine Interface Display 60MB 10 Inch NS10-TV00B-V2

**Omron Touch Screen NS10-TV00B-V2 10.4 Inch TFT Touch Panel HMI 640*480 NS10TV00BV2 Programmable**

Features

Ordering information

Type			Order Code
TFT, 15", 1024 x 768 pixels	with Ethernet	Black	NS15-TX01B-V2
TFT, 15", 1024 x 768 pixels	with Ethernet	Silver	NS15-TX01S-V2
TFT, 12", 800 x 600 pixels	no Ethernet	Black	NS12-TS00B-V2
	no Ethernet	Ivory	NS12-TS00-V2
	with Ethernet	Black	NS12-TS01B-V2
	with Ethernet	Ivory	NS12-TS01-V2
TFT, 10", 640 x 480 pixels	no Ethernet	Black	NS10-TV00B-V2
	no Ethernet	Ivory	NS10-TV00-V2
	with Ethernet	Black	NS10-TV01B-V2
	with Ethernet	Ivory	NS10-TV01-V2
TFT, 8.4", 640 x 480 pixels	no Ethernet	Black	NS8-TV00B-V2
	no Ethernet	Ivory	NS8-TV00-V2
	with Ethernet	Black	NS8-TV01B-V2
	with Ethernet	Ivory	NS8-TV01-V2

Specifications

Item	NS15	NS12	NS10	NS8
Display type	15 inch color TFT	12 inch color TFT	10 inch color TFT	8 inch color TFT
Display resolution	1024×768 (XGA)	800×600 (SVGA)	640×480 (VGA)
Number of colors	256 (32.768 for image data)
Backlight	2×CCFL	1×LED
Backlight lifetime	Min. 50000 hours
View angle	Left/right ±85°, Top 70°, Bottom 80°	Left/right ±60°, Top 45°, Bottom 75°	Left/right ±60°, Top 35°, Bottom 65°	Left/right ±65°, Top 50°, Bottom 60°
Touch panel	Analog resistive touch	Matrix resistive touch
Number of functional keys	3	-
Dimensions in mm (H×W×D)	304×405×75.8	241×315×48.5		177×232×48.5
Weight	4.2 kg max.	2.5 kg max.		2.0 kg max.
Screen data capacity	60 MB
Internal memory	Bit memory: 32,767 bits, Word memory: 32,767 words, Retentative memory: 8,192 bits and 8,192 words.
Memory card interface	1 slot ATA Compact Flash card
Printer connection	PictBridge support
Serial (COM1)	1×RS-232
Serial (COM2)	1×RS-232/422/485	1×RS-232
USB Slave	For programming & printing
Ethernet	IEEE 802.3u 10Base-T/100Base-TX
Expansion module	Optional network/video unit			Optional video unit
Line voltage	24 VDC ±15%
Power consumption	45 W max.	25 W max.
Battery	CJ1W-BAT01
Battery lifetime	5 years (at 25°C)
Enclosure rating (front side)	IP65F (equivalent to NEMA4)
Obtained standards	UL 1604 Class 1 Diff. 2, cUL, CE, Lloyds, DNV
Operating environment	No corrosive gases
Noise immunity	Conforms to IEC61000-4-4, 2 KV (power lines)
Ambient operating temperature	0 to 50°C 1 1. see manual for details.
Ambient operating humidity	35% to 85% (0 to 40°C) with no condensation, 35% to 60% (40 to 50°C) with no condensation
