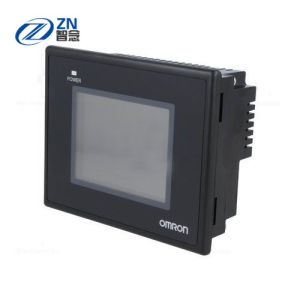

NS15-TX01B-V2 NS SERIES Backlit TFT HMI Term Membrane Keyboard 15in Display

Ask Lasest Price
Brand Name :	Omron
Model Number :	NS15-TX01B-V2
Price :	$50-500
Payment Terms :	T/T, western union
Supply Ability :	10pc/per week

Add to Cart

Product Details
Company Profile

NS15-TX01B-V2 NS SERIES Backlit TFT HMI Term Membrane Keyboard 15in Display

NS15-TX01B-V2 NS SERIES Backlit TFT HMI Term; Membrane Keyboard; 15in Display; 6 port; 24Vdc Supply

Specifications

Series		NS12-V2				NS15-V2
Model		NS12- TS00-V2	NS12- TS01-V2	NS12- TS00B- V2	NS12- TS01B- V2	NS15- TX01S-V2	NS15- TX01B-V2
Built-in Ethernet port		No	Yes	No	Yes	Yes	Yes
Case color		Ivory		Black		Silver	Black
Display device		High-definition TFT color LCD				High-definition TFT color LCD
Effective display area		Width 246.0 × height 184.5 mm (12.1 inches)				Width 304.1 × height 228.1 mm (15 inches)
Display colors		256 colors
Number of dots		800 dot horizontal × 600 dot vertical				1,024 dot horizontal × 768 dot vertical
View angle		Left/right: 80°, Top: 80°, Bottom: 80° *3				Left/right: 80 °, Top: 70 °, Bottom: 60 °
Screen data capacity		60 Mbytes
Image data (BMP or JPG images)		32,768 colors
Memory Card		Supported
Ladder Monitor function		Supported
Video Input Unit support		Supported (Image displayed via video input is 260,000 colors)				(Only RGB input is enabled.)
Controller Link Interface Unit (Wired) support		Supported
Backlight *1	*Service life 2**	50,000 hours min.
	Brightness adjustment	Three-level or 32-level brightness adjustment from the touch panel screen. *3
	Backlight error detection *4	Error is detected automatically, and the RUN indicator flashes green as notification.
Touch panel (matrix type)	Method	Matrix resistive membrane type				Analog resistive membrane type *5
	Number of switches/ resolution	1,900 (50 horizontal × 38 vertical) 16 × 16 dots for each switch				Resolution: 1,024 (horizontal) × 1,024 (vertical)
	Input	Pressure-sensitive
	Service life	1,000,000 touch operations.
Display text	Labels	Can be specified in CX-Designer. Font, style, and size can be specified.
Display text	Numerals, alarms, and character strings	Scalable Gothic: Magnification: 6 to 255 points Rough: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8 Standard: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8 Fine: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8 7-segment display: Can display only numerals, dates, and times.
Text attributes	Color	256 colors
	Font style (only when vector font is specified)	Bold or italic
	Vertical alignment	Top, center, or bottom
	Horizontal alignment	Left-justified, centered, or right-justified
Flicker	Objects supporting flicker	Functional objects: Select from up to 10 types of registered flicker settings. The flicker speed and flicker range can be set. Fixed objects: Select from three flicker types.
Numeral units and scale settings		1.000 max.
Alarm/event settings		5,000 max.
Expansion interface		For Expansion Interface Units

*1. Contact your nearest OMRON representative to replace the backlight.
*2. This is the estimated time before brightness is reduced by half at room temperature and humidity. It is not a
guaranteed value.
The service life will be dramatically shortened if PT is used at low temperatures. For example, using the PT at
temperatures of 0 °C will reduce the service life to approximately 10,000 hours (reference value).
*3. Lot No. 28X1 or later of NS8 models, Lot No. 11Y1 or later of NS10 models, Lot No. 14Z1 or later of NS12 models,
Lot No. 31114K or later of NS15 models.
*4. This function does not indicate that the service life has been reached. It detects when the backlight is not lit due to a
disconnection or other errors.
Backlight error detection indicates that all backlights (2) are OFF.
*5. An analog touch panel is used with the NS15. Do not press the touch panel in two or more places simultaneously.
If the touch panel is pressed in two or more places simultaneously, it may activate a switch between the points that
are pressed.
