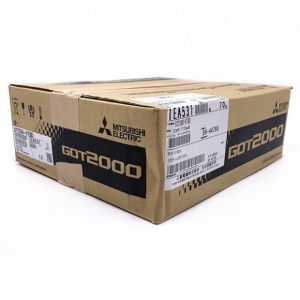

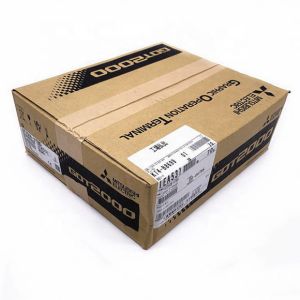

GT2508-VTBD 8.4″ Mitsubishi Electric Touch Screen HMIs On Sale

Ask Lasest Price
Brand Name :	Mitsubishi
Model Number :	GT2508-VTBD
Price :	$120-$800
Payment Terms :	T/T, western union
Supply Ability :	10pc/per week
MOQ :	1 piece

Add to Cart

Product Details
Company Profile

GT2508-VTBD 8.4″ Mitsubishi Electric Touch Screen HMIs On Sale

GT2508-VTBD 8.4″ Mitsubishi Electric Touch screen HMIs On Sale

Basic information

Model name	GT2508-VTBD
Overview	8.4”, VGA, TFT color LCD 65536 colors, Panel color: Black, Power supply voltage: 24 V DC
Conformance standard	UL cUL CE(EMC) CE(RoHS) KC LR NK DNV ABS RINA BV

Page Top

Merit

A wide variety of specifications suit every system design

Communication interfaces such as Ethernet, RS-232, RS-422/485, USB host/device and SD memory card are standard features.
High capacity data processing ensure smooth screen operation even when multiple tasks, such as logging, script, alarm, or device data transfer, are running.

FA Transparent function simplify your debugging work!

By connecting a personal computer to the front USB interface on the GOT, the GOT acts as a transparent gateway to enable startup and adjustment of equipment.
Users do not have to bother with opening the electrical cabinet or changing cable connections.

General specifications

Operating ambient temperature	Display section
Storage ambient temperature
Operating ambient humidity
Storage ambient humidity
Vibration resistance	Approval standards
	Under intermittent vibration
	Under continuous vibration
Shock resistance
Operating atmosphere
Operating altitude
Installation location
Overvoltage category
Pollution degree
Cooling method
Grounding
Remarks	Operating ambient temperature

	Operating altitude
	Overvoltage category
	Pollution degree

0°C to 55°C

-20°C to 60°C

10% RH to 90% RH, non-condensing

Compliant with JIS B 3502 and IEC 61131-2^*13

[ Frequency: 5 to 8.4 Hz ]
Half amplitude: 3.5 mm
Sweep count: 10 times in each X, Y, or Z direction
[ Frequency: 8.4 to 150 Hz ]
Acceleration: 9.8 m/s²
Sweep count: 10 times in each X, Y, or Z direction

[ Frequency: 5 to 8.4 Hz ]
Half amplitude: 1.75 mm
[ Frequency: 8.4 to 150 Hz ]
Acceleration: 4.9 m/s²

Compliant with JIS B 3502 and IEC 61131-2 (147 m/s² (15 G), 3 times in each X, Y, or Z direction)

No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)

2000 m or less

Inside control panel

II or less

2 or less

Self-cooling

Grounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 2 mm² or more. If impossible, connect the ground cable to the control panel.

Includes the temperature inside the enclosure of the control panel to which the GOT is installed.

When any of the following units or option is mounted, the maximum operating ambient temperature must be 5°C lower than the one described in the general specifications: MELSECNET/H communication unit (GT15-J71LP23-25, GT15-J71BR13), CC-Link communication unit (GT15-J61BT13), protective cover for oil.

Do not use or store the GOT under a pressure higher than the atmospheric pressure at altitude 0 m.
Doing so may cause a malfunction. Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off.

This indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within the premises.
Category II applies to equipment that is supplied with power from fixed facilities. The withstand surge voltage for the equipment with the rated voltage up to 300 V is 2500 V.

This indicates the occurrence rate of conductive material in an environment where a device is used.
Pollution degree 2 indicates an environment where only non-conductive pollution occurs normally and a temporary conductivity caused by condensation shall be expected depending on the conditions.

GT2508-VTBD 8.4″ Mitsubishi Electric Touch Screen HMIs On Sale
